Crawler Hydraulic Sonic Crawler Drilling Rig With 132KW Cummins Engine
Machine Introduction
The RCF200S drilling rig has become a high - performance heavy - duty equipment on the market with its fully hydraulic sonic drilling technology, powerful German sonic drill bits and flexible crawler chassis design. It not only shows excellent drilling capabilities in special fields such as geothermal hole drilling and gold mine exploration, but also performs well in conventional applications such as geological surveys and environmental protection surveys, with a wide range of applications. Its unique features include high drilling speed, powerful drilling capacity, long travel distance, efficient handling of unexpected situations and high drilling efficiency. In addition, RCF200S is also equipped with automatic pole holding, hydraulic clamping pole device, body steering device and optimized accessories, making it a multifunctional, efficient and user - friendly drilling rig. Equipped with a 132 - kilowatt Cummins engine, it provides strong power for the RCF200S, ensuring its excellent performance under various working conditions. In short, RCF200S is a drilling rig with stable and reliable performance and long service life. It is favored in many industries due to its excellent performance and wide range of applications.
RCF200S is a full hydraulic Sonic drilling rig. This drilling rig is a crawler chassis loading, full hydraulic drive, driven by Germany Sonic drill head. It is one heavy duty drilling rig with great power .This machine has the best performance with wider applications in the drilling projects .It is widely used for the drilling of deeper and more complex stratum investigation ,geological investigation ,environmental protection and investigation,geothermal hole drilling,gold placer investigation ,dam and tailing monitoring hole drilling ,ocean engineering survey and water well drilling etc projects
Technical Parameters
| Model | RCF200S |
| Ability | hole depth hole diameter | 350m φ76--168mm |
| Drill head | rotary speed torque frequency vibrator force weight | 0—52/103rpm 9300/3900Nm 6000CPM 200KN 1800Kg |
| Winch | pulling force diameter of wire rope | 20KN 7mm*50m |
| Feeding system | pressure pressure speed pulling fore pulling speed feeding stroke | 50KN 11.3;72m/min 150KN 7.8;50m/min 3500mm |
| Diesel power | power rotary speed | 132KW cummins engine 2200rpm |
| Approx weight | 12T |
| Outside dimension | transportation L*W*H working L*W*H | 8130*2300*3270mm 5130*2300*8200mm |
Machine Advantages
1.Strong drilling ability, wide application range, long running distance, fast drilling speed, easy handling of accidents, high drilling efficiency
2. Serialized products have different models, different capabilities, and multiple choices to meet the needs of different customers.
3. it adopt Germany Sonic drill head ,with superior quality and stronger torque .with high frequency and strong vibrator force.
4. The drilling rig is equipped with a hydraulic clamping shackle device and an automatic shackle, which reduces auxiliary time and labor intensity.
5. The crawler chassis equipped with a turning device on the car makes the whole machine move and find holes more conveniently and quickly.
6. Optimize domestic and foreign famous brand parts, so that the performance of the whole machine is stable and reliable, and the service life is long.
7. this drilling rig adopt 132KW cummins engine ,with very strong power
8. this machine is widely used for different projects ,such as geological investigation ,environmental protection and investigation ,borehole drilling for geothermal ,gold placer investigation ,Dam and tailing monitoring hole drilling ,ocean engineering survey ,borehole for water well drilling etc projects

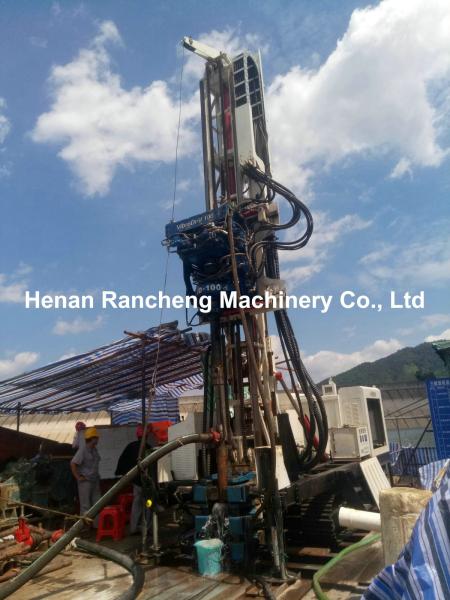

Machine Pictures
