Multi-Functional 30m Solar Pile Driver/ Hydraulic Pile Driver for Piling Anchor
Machine Description
RC185Y is one multi-functional drilling rig, top head driving, has different drilling ways, such as mud pump rotary drilling, air DTH drilling, auger pile drilling, solar pile installation, PV solar pile ground screwing, etc, widely used in many different projects.
This hydraulic pile driver uses a new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection.
RC185Y hydraulic micro pile driver is a versatile tool that offers exceptional performance and durability. This machine is specifically designed for construction sites that require precision and efficiency, making it an ideal choice for a range of applications.
Application:
This hydraulic borehole drilling rig is widely used in water well drilling, solar pile installation, auger piling foundation, geotechnical engineering foundation, blast hole drilling construction, etc.
Machine Specifications
| Bore diameter(hammer) | 90-300mm |
| Bore depth | 20-100m |
| Air consumption | 10-26m³/min |
| Air pressure | 0.7-1.6Mpa(medium) |
| 1.6-2.46Mpa(high) |
| Pipe diameter | 76mm/89mm |
| For rock | F=6-20 |
| Bore diameter(screw) | Max 400mm |
| Bore depth | 0-30m |
| Screw pipe diameter | 130-400mm |
| Once promotion | 3200mm |
| Skid pitch | 120º |
| The swinging angle of the drilling boom | Left and right total 50º |
| The swinging angle of the skid | Left and right total 40º |
| Rotation speed | 0-110r/min |
| Host power | 84Kw |
| Climb ability | 35º |
| Dimension(L*W*H) | 5300*1970*2620mm |
| weight | 5800Kg |
| Walk speed | 0-2.5km/h |
Machine Advantages
1. Compact design: RC185Y has a small size and light weight, making it easy to transport and operate in narrow spaces. It's perfect for both indoor and outdoor applications, and can easily navigate through tight spaces and rough terrain.
2. High performance: Despite its compact size, RC185Y has a powerful engine that delivers high torque and speed. This allows the machine to drive piles quickly and accurately, reducing the time and effort required for construction projects.
3. Ease of use: RC185Y is user-friendly and intuitive, with simple and easy-to-understand controls that anyone can operate. The machine also features an ergonomic design that minimizes operator fatigue and maximizes productivity.

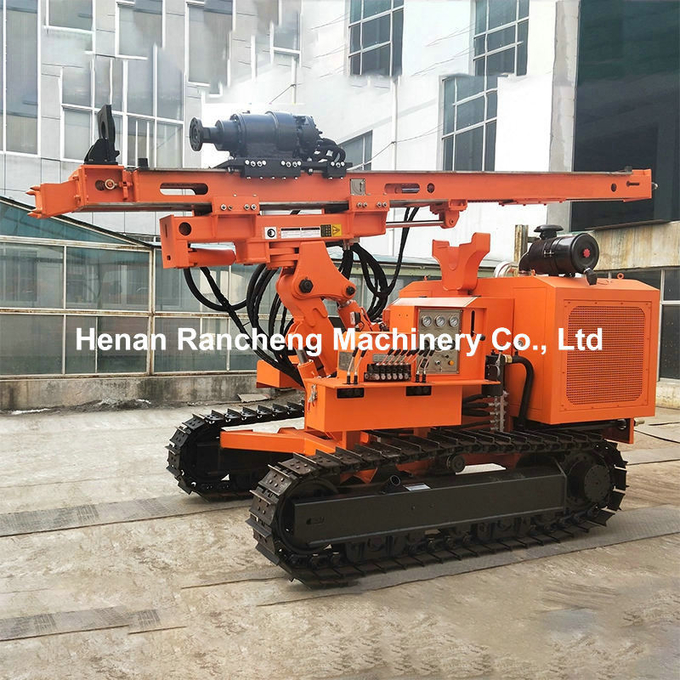

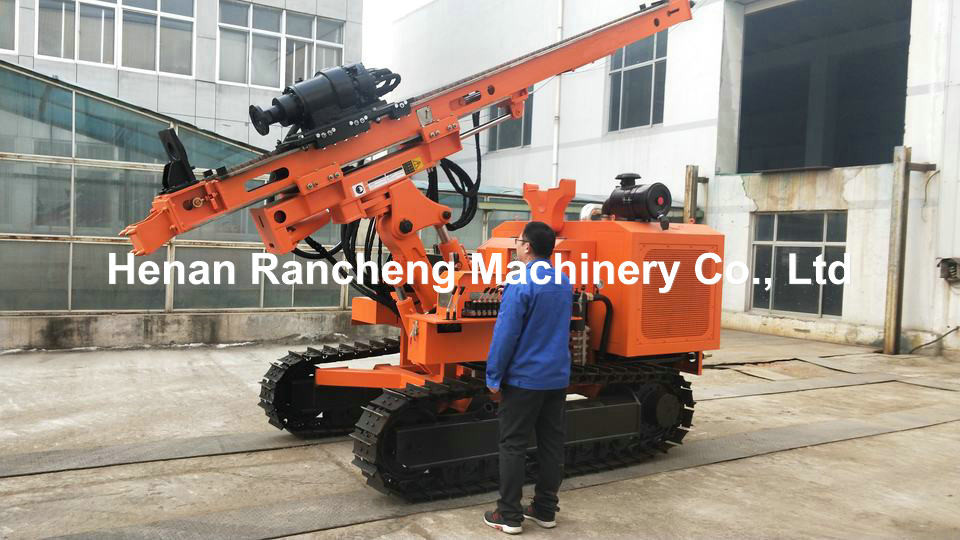

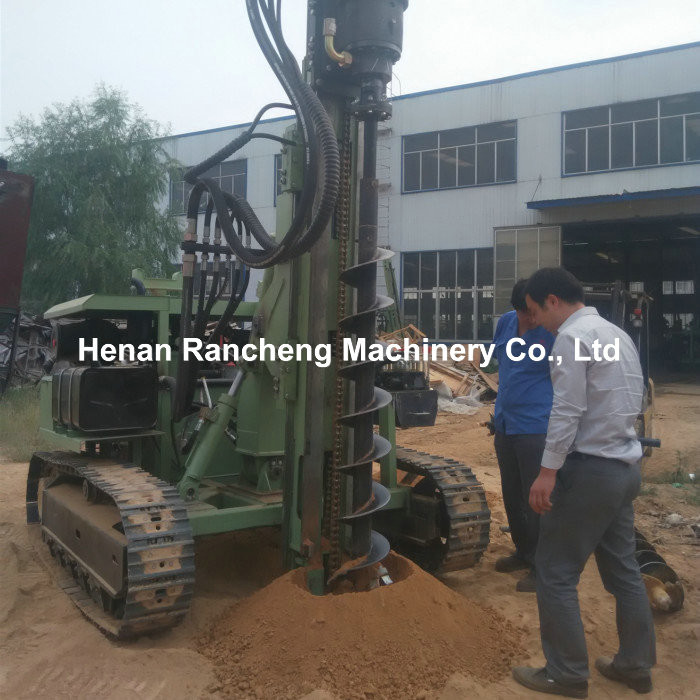

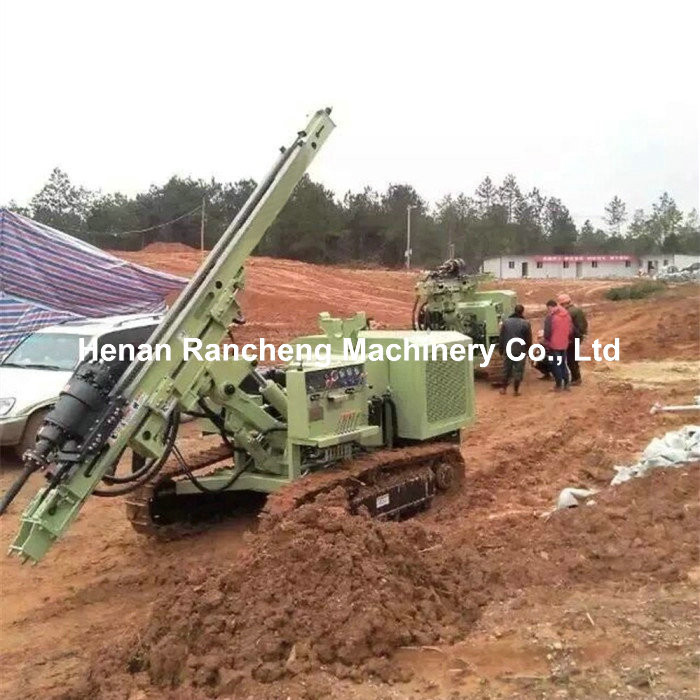

Machine Pictures
